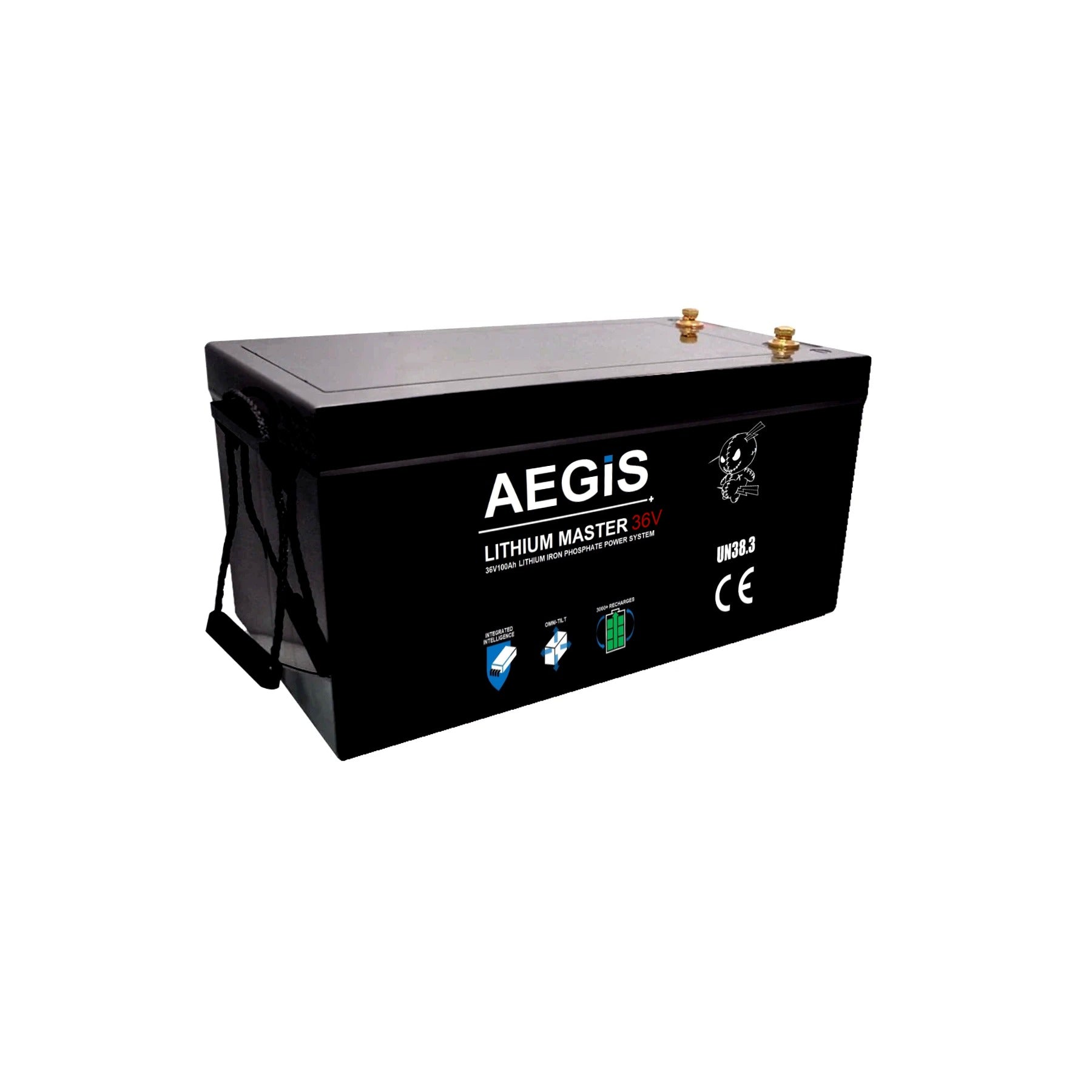

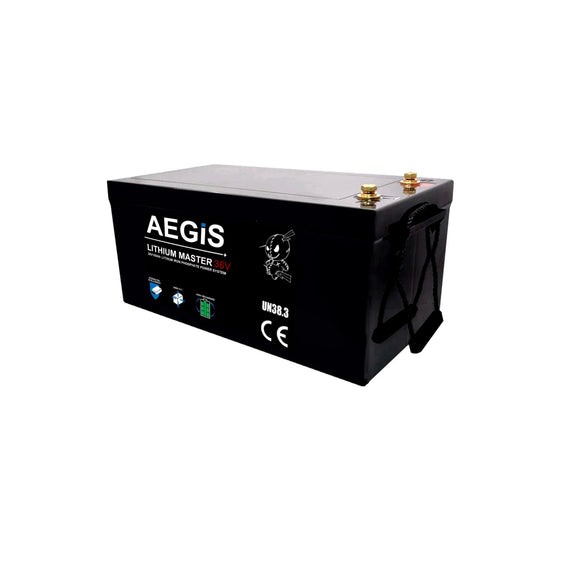

36V 100Ah LiFePO4 Deep Cycle Battery

Write a review

Brand : Lithium Master

Movement : RV / Motorhome

SKU : ALF-0360100A + CRF-3620M

Availability : Out of stock

Effective Price : Regular price $1,799.99

The Lithium Master 36V 100Ah LiFePO4 Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 36V devices. It is perfect for solar storage, rv's and motorhomes, boats and marine applications, robots, and other applications that require a higher-energy density battery. The battery...

Description
Reviews

The Lithium Master 36V 100Ah LiFePO4 Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 36V devices. It is perfect for solar storage, rv's and motorhomes, boats and marine applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Powerpole connectors making it a perfect drop in solution for your applications. Lithium Master batteries have a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

Specifications

Battery Type	ABS Case
Battery Chemistry	Lithium Iron Phosphate - LiFePo4
Cell Type/Assembly Method	Cylindrical cells/welded
Voltage (V)	36V
Capacity (Ah)	100Ah
Energy Stored (Wh)	3600 Watt-Hours
Weight	76.17 lbs. (34.55 kg)
Dimension (L x W x H)	490 mm x 260 mm x 220 mm
Cycle Life	2000+ cycles
Normal Charge Current	18.0 Amps
Maximum Continuous Charge Current	50.0 Amps
Nominal Continuous Discharge Current	50.0 Amps
Maximum Continuous Discharge Current	100.0 Amps
Maximum Pulse (Peak) Discharge Current (2 sec.)	200.0 Amps
Charge Temperature	0°C to 45°C
Discharge Temperature	-20°C to 60°C
Operating Humidity	60±25%R.H
Storage Humidity	60±25%R.H
Automatic Battery Protection Module/System	Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing

Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 43.8VDC
Current: 18A
Connector: Alligator Clip
Model Number: CRF-03618M

LFP Advantage

Advanced LFP (Lithium Iron Phosphate) Li-ion Chemistry superior to traditional Li-ion Batteries
All-Aspect Solution with best overall balance of features
High Specific Energy (90-120Wh/kg)
Designed Specifically for Marine, RV and Deep Discharge Electronics
Excellent Lifespan (3000+ Cycles Average)

lfp lifepo4 lithium battery by lithium master

Intelligent Technology

Battery Management System (BMS) Board as Standard
Every Battery has bespoke board matching its performance parameters
Comprehensively balances charging and discharging
Internal balancing circuitry and charger circuitry inside BMS
Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
Dramatically extends service life

Improvements

Achieve full depth discharge of 100% Label Capacity
“True Lithium Capacity” guarantees capacity of purchase is capacity delivered
Reliable, repeatable full depth cycling without system life cycle degradation
LFP Systems can be fully discharged safely without impact on system performance
Multiple times usable capacity of Lead Acid

Policy
Warranty: 10 years standard Lithium-Ion Battery Warranty
Repair or Replace: first 5 years
Returns/exchange: 30 days
Cancellation: Within 24 Hours ⟶ No charge
Shipping: Standard within 2-3 business days
